Switching power supply
LIGHTING POLE TERMINAL BOARD
DESCRIPTION
The street lighting control system prevents electric shock to humans and animals, short circuit protection of cable or lantern devices with a warning system, designed to increase safety or reduce danger and loss caused by electrical leakage currents, over current detection caused by stealthy connection. This system consists of 3 parts as follows.
FEATURES
- Lighting Pole Terminal Board (LPTB) comprising Lighting Pole Terminal blocks (LTB), Miniature Circuit Breaker (MCB) and Lighting Pole Protection Unit+Communication port (LPPU)
- Lighting Control Panel (LCP) 1 set of circuits (can control up to 63 lighting poles)
- Line notification system (LNS) a notification system through the Line application.

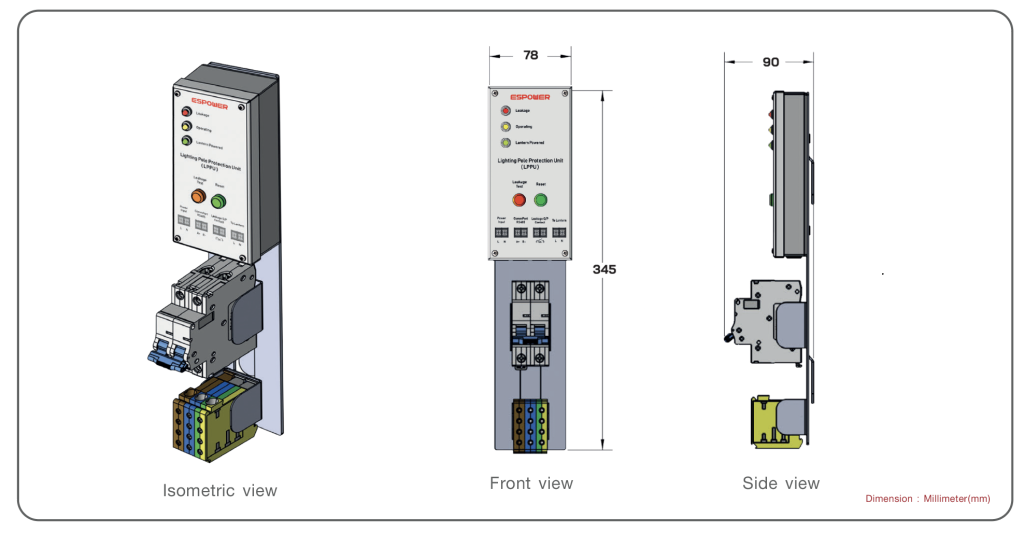

DIMENSION

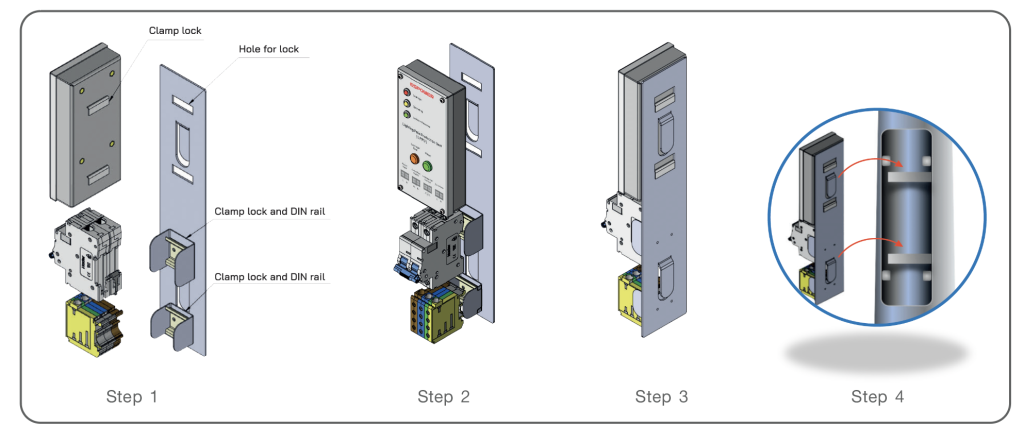

ASSEMBLY AND INSTALLATION
