SD-BD-04-03/Rev.10/27-02-69

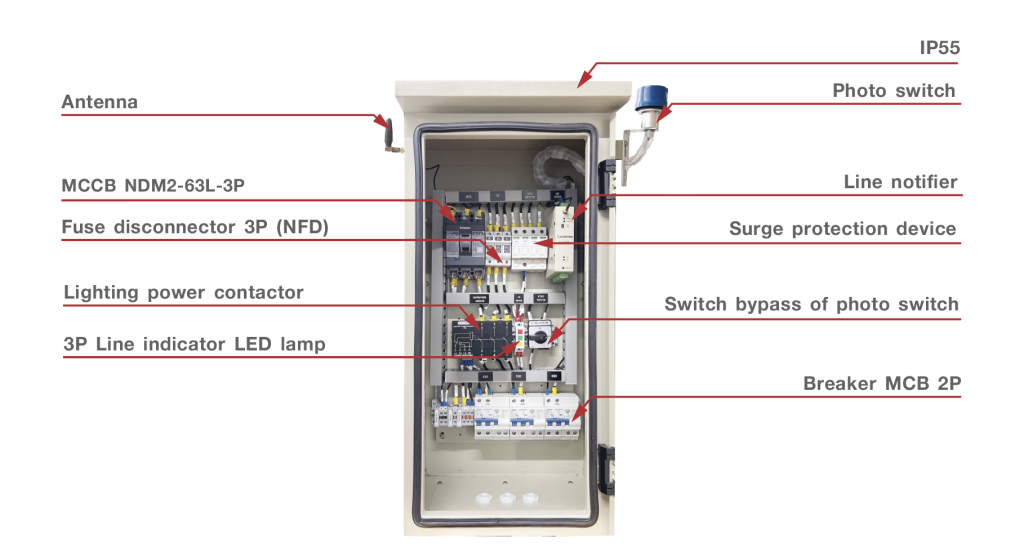

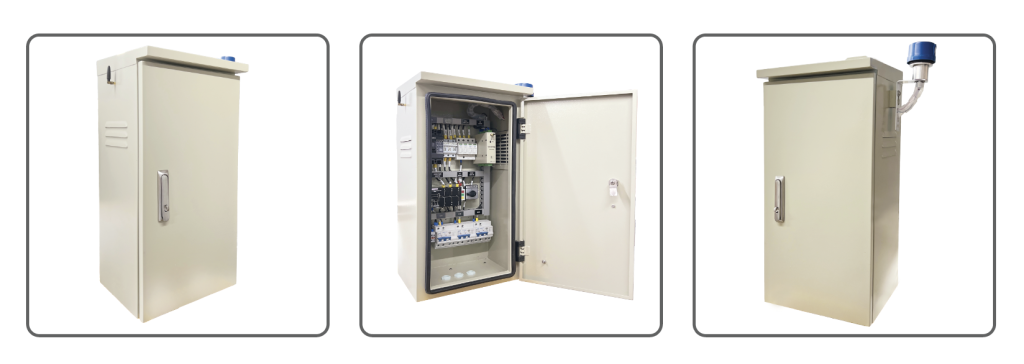

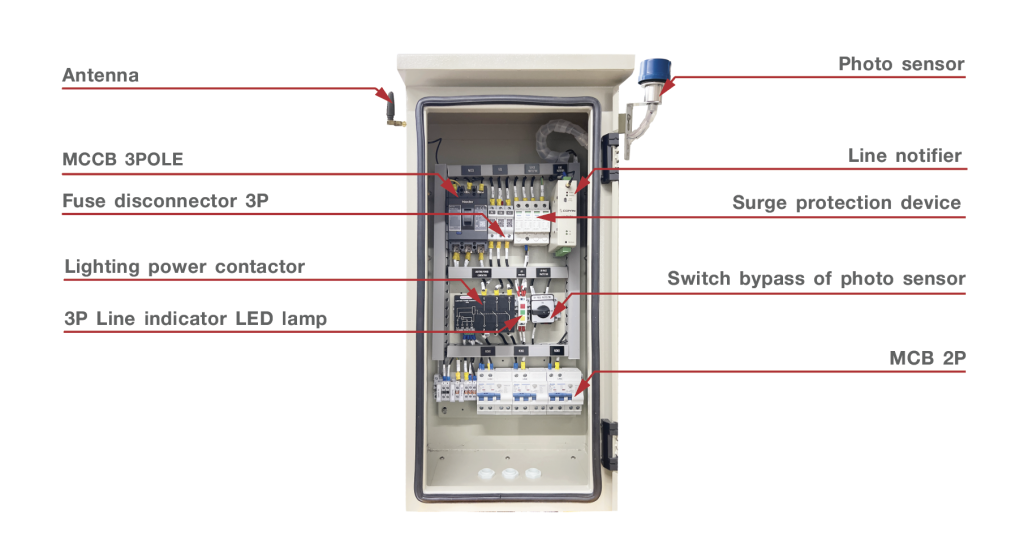

The Lighting Control Panel (LCP) controls up to 63 lighting poles.

It includes a photo sensor for automatic ON/OFF control and communication

capability for status monitoring. Abnormal current conditions are reported via

the Line Notification System.
