LINE LAMP (NLL)

Description

        NLL series line lamps or status lamps are panel mounted assemblies which are consisting of the indicator housing, an internal LED lamp, terminals (at the rear side), and lens. Applications include industrial control panels of all types, equipment indicating panels, status indicators and display lighting. The light source is from high brightness pure color LED.

Features

♦      Robust , compact and luxurious design

♦      Selectable lens shape either square (30 x 30 mm.) or rectangular shape (30 x 60 mm.).

♦      High brightness LED chip technology with built in current limiting resistor and zener diode.

♦      Various choices of LED illuminating colors such as white, red, green, yellow, amber and sky blue

♦      Various input voltages (both AC & DC) for LED indicator

Specification

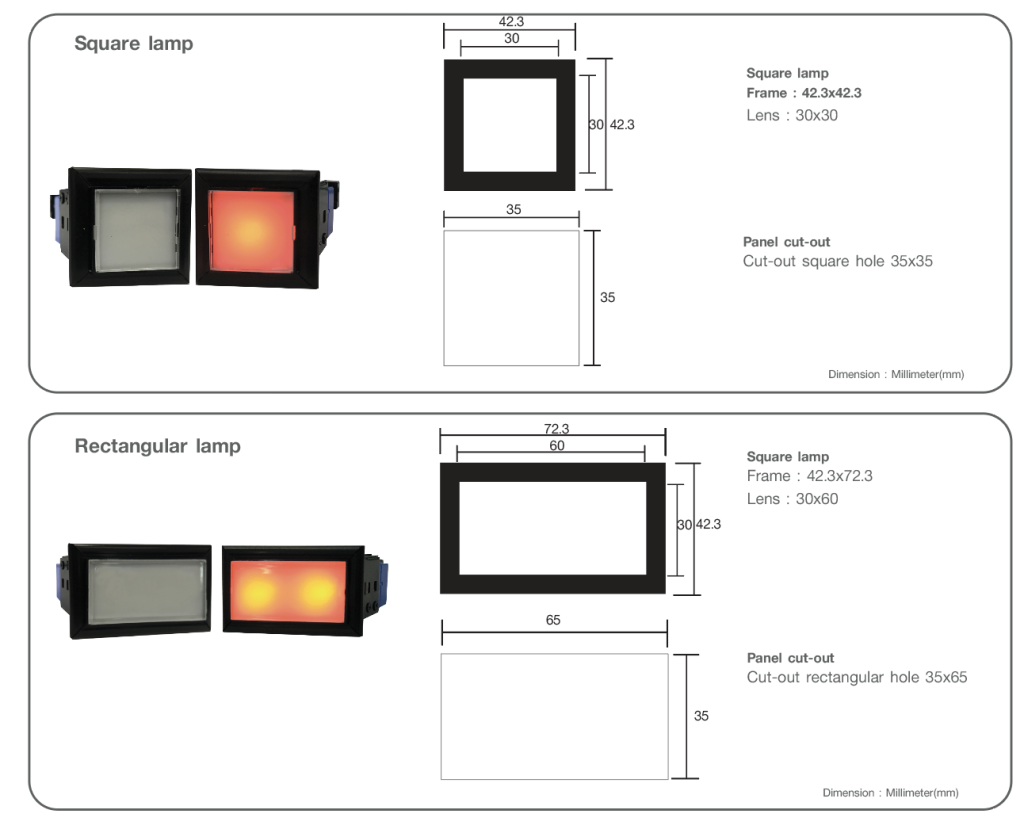

Dimension

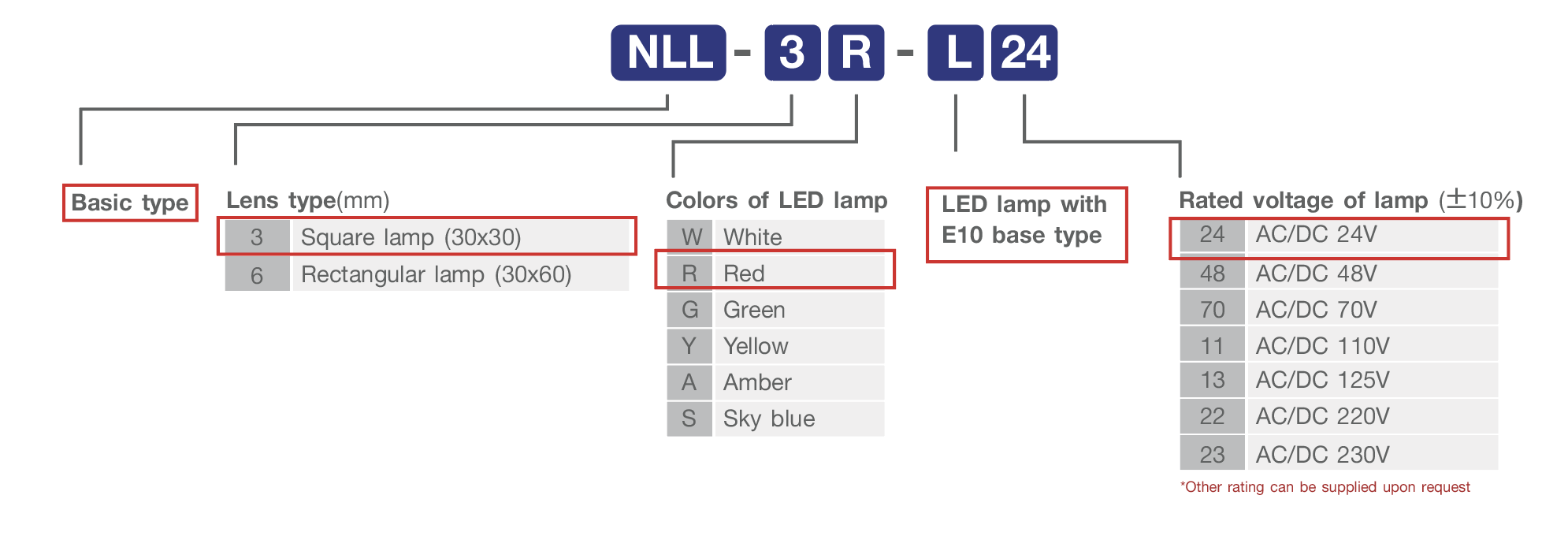

Product Coding
