FAST TRIP RELAY
FAST TRIP RELAY

Description

       The relay type E94 fast trip relay or auxiliary tripping relay is intended to be used in control and protection circuit for applications requiring high reliability and availability such as power stations, substations, railways and industrial plants. The relay has been designed for flush mounting style, the robust contacts are characterized by high making/breaking capacity, overload capacity and continuous current intensity capacity. Their high degree of protection ensure reliable operation in tropical and/or salty sea air ambient conditions.

       Regarding to the auxiliary tripping relay or fast trip relay. The Pick-up time of the relay E94 is less than 8ms. and Drop-out time is less than 40ms. The relay type E94 are consist in two versions, the first version is E94-3 which has three changeover contacts, flush mounting type with screw-type terminals at the rear. The second is E94-6 which has six changeover contacts and other specifications are the same as the first one.

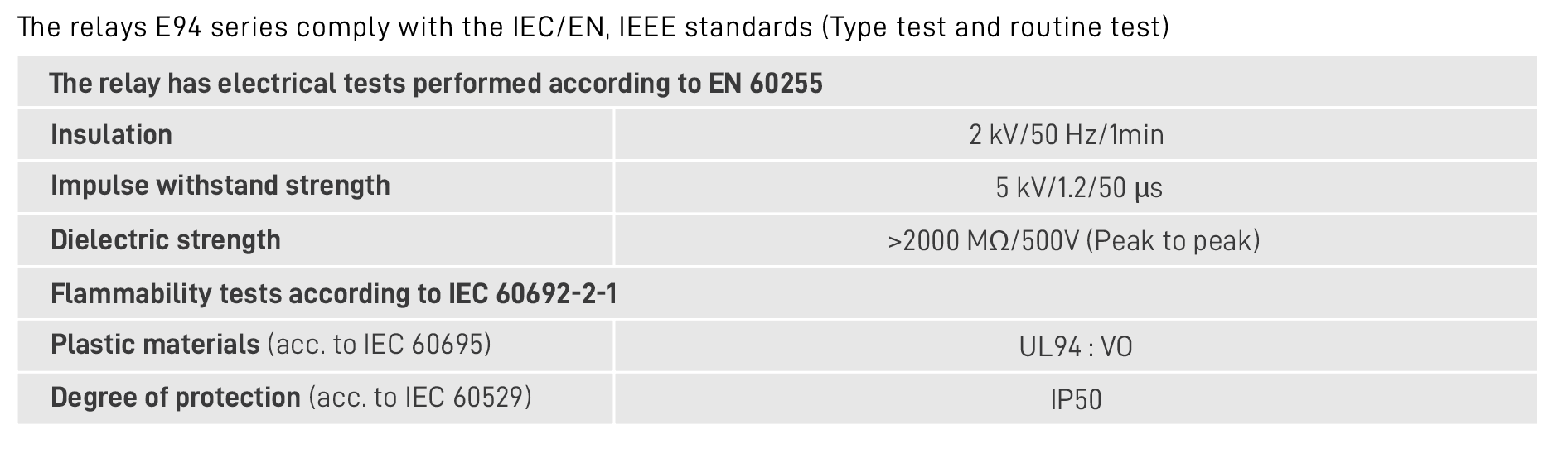

Standards and Test

       The relays E94 series comply with the IEC/EN, IEEE standards (type test and routine test)

       The relay has electrical tests performed according to EN 60255

        – Insulation                                    2 kV/50 Hz/ 1 min
        – Impulse withstand strength           5 kV/1.2/50 μs

        – Dielectric strength                        >2000 MΩ/500 V (peak to peak)

       Flammability tests according to IEC 60692-2-1

       Plastic materials                             UL 94 : VO

       (acc. to IEC 60695)

       Degree of protection                       IP50

       (acc. to IEC 60529)

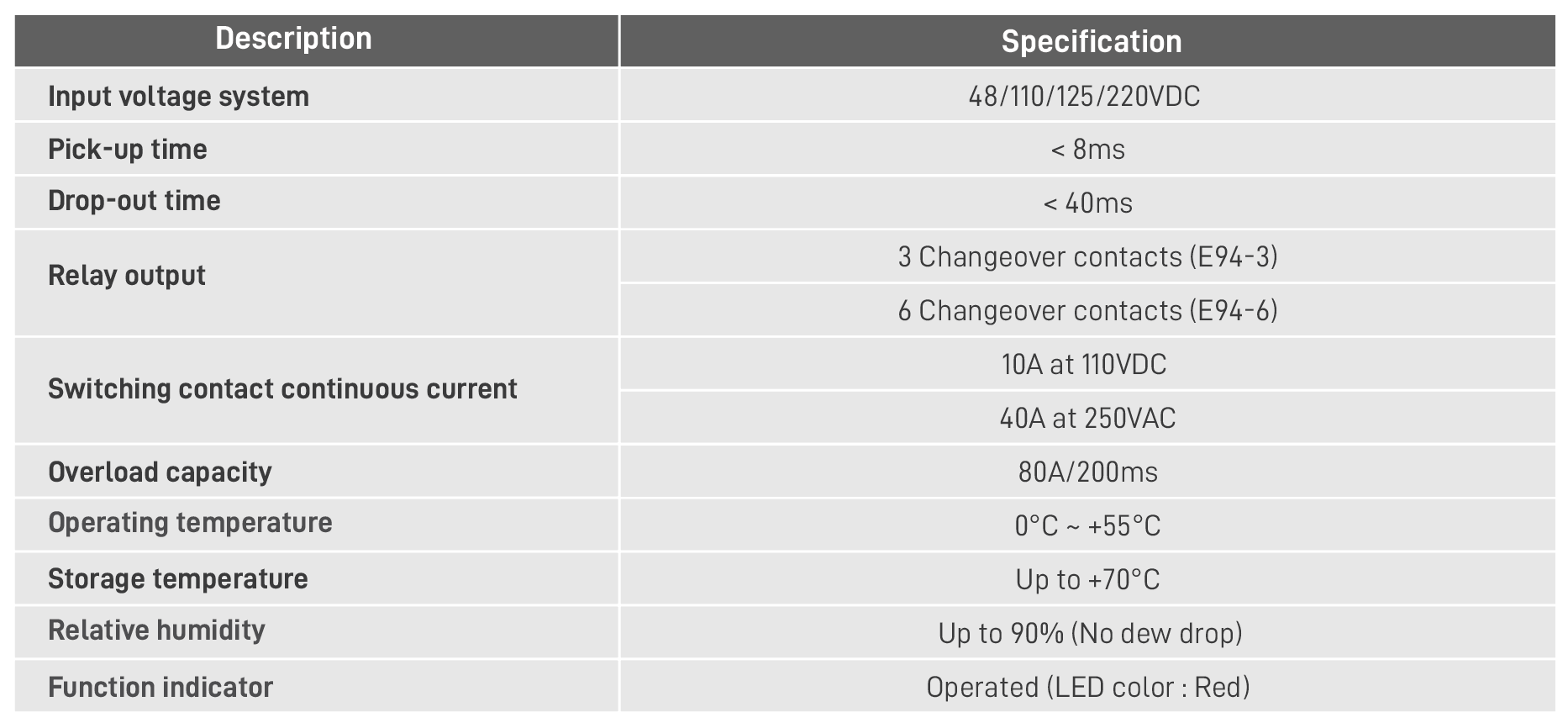

Technical Data

Connection Diagrams

Dimension

Product Coding
